Calibre VBA01 seen through the sapphire case back

Calibre VBA01

Two and a half millimetres, built around a voice.

We did not add a strike to a movement. We built a movement around a strike.

Calibre VBA01 of a Monaco Pièce Unique, seen through the sapphire case back

Most striking watches begin with a calibre and look for room for sound. Calibre VBA01 was conceived in the opposite order, as a bellfounder would: the acoustic architecture was defined first, and the timekeeping movement was then disciplined to live around it.

At 2.5 millimetres, the VBA01 sits among the thinnest automatic striking movements ever realised. A micro rotor, recessed into the plane of the movement rather than mounted above it, preserves an uninterrupted view of the going train and the striking work.

It was developed in close cooperation with one of Switzerland’s most distinguished independent movement ateliers.

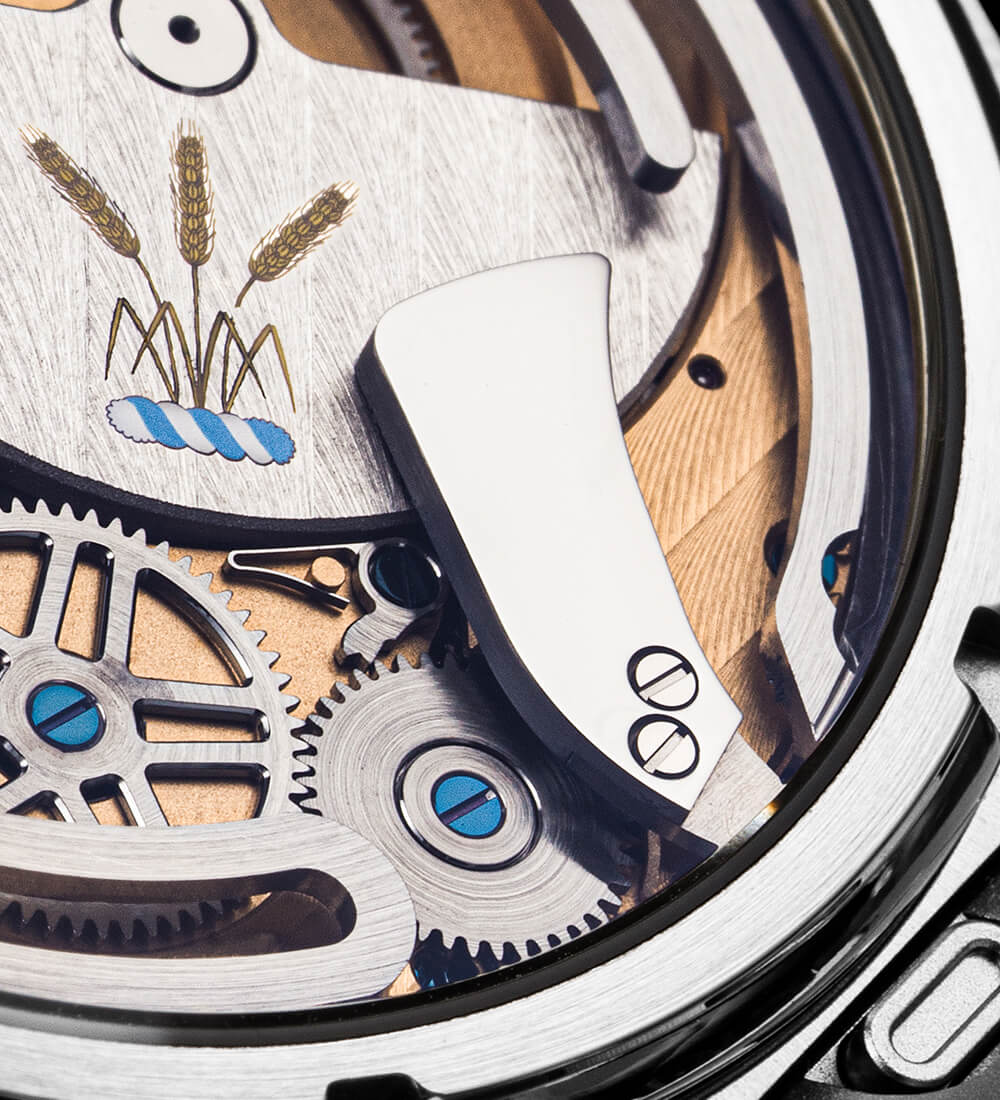

Anatomy of a passage.

At each half hour the sonnerie au passage releases the hammer. It falls, meets the gong, and lets it ring; nothing is summoned, nothing is pressed. The hammer is the largest ever set in a wristwatch, because mass is what gives a strike its body, a lesson learned over generations at the casting pit.

  1. ReleaseThe going train lifts and frees the hammer at the half hour.
  2. StrikeThe hammer meets the gong, and lets it go.
  3. ResonanceThe gong rings out and slowly decays, as a bell does.

And when the moment calls for stillness, in a concert hall, at a ceremony or through the quiet of the night, the strike can be silenced. The Heero then keeps the hour without a word, until its wearer chooses to hear it again.

Diagram, not to scale. The waveform shows the shape of a strike: a sharp attack and a long decay.

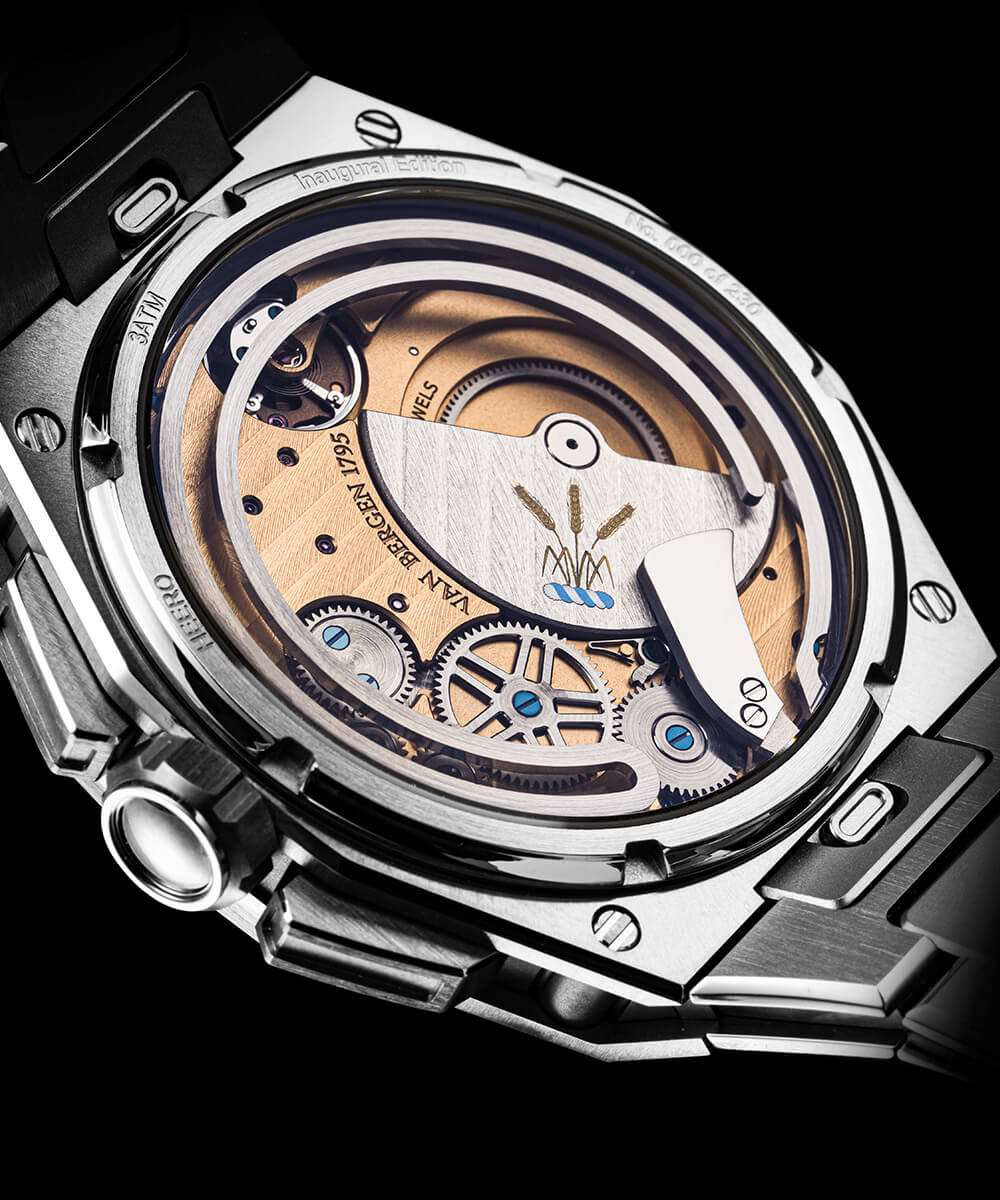

Calibre VBA01 through the sapphire case back, its bridges bevelled and polished by hand

The finishing

Finished by hand.

What the eye is given, the hand has settled first. Bridges are bevelled and polished by hand, including the inward angles no machine can cut. Côtes de Genève run across the bridges, circular graining beneath them, and perlage where no eye will ever reach.

The strike is finished not to a tolerance but to a tone, by the discipline that once voiced carillons.

The calibre in figures.

One movement beats inside all 314 numbered pieces of the Heero Collection and inside every Pièce Unique.

See the collection
Calibre
VBA01, Van Bergen manufacture
Height
2.5 mm
Winding
Automatic, recessed micro rotor
Frequency
5 Hz, 36,000 alternations per hour
Complication
Sonnerie au passage, each half hour
Striking record
The largest hammer ever set in a wristwatch
Visible through
The sapphire case back

A Van Bergen is received, not purchased.

Every piece is entrusted in person, at a private appointment with the maison or an authorised partner. It is presented in a Van Bergen bell, a bronze replica of a prize-winning bell the family cast in 1862, and first deliveries begin in the first quarter of 2027.
